Tech-Air® Off-Road System

Regular price: €999,95

Black Friday: 2x member points on full priced items.

Size Size guide

Color Black/Red

Product variants

Out of stock

Free shipping above 100,-

Free returns 30 days

5% off first order to email subscribers

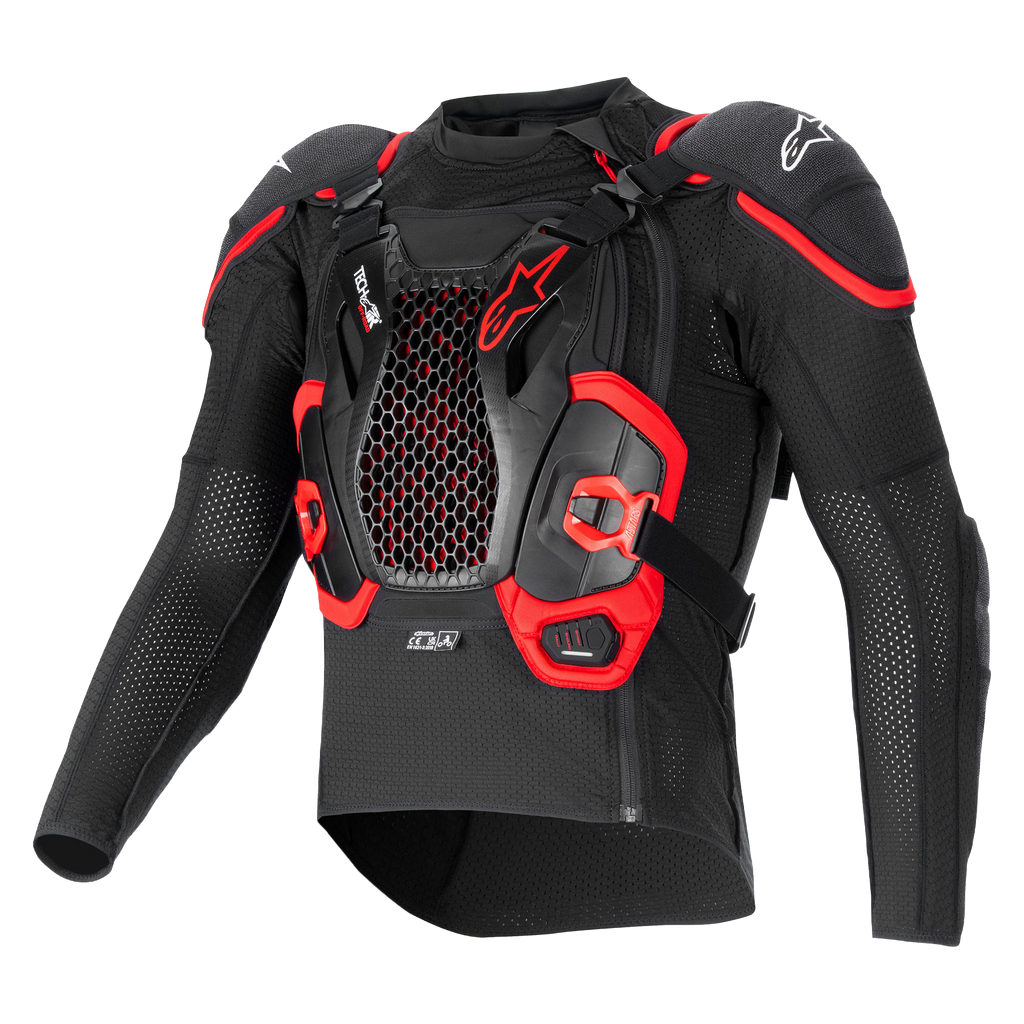

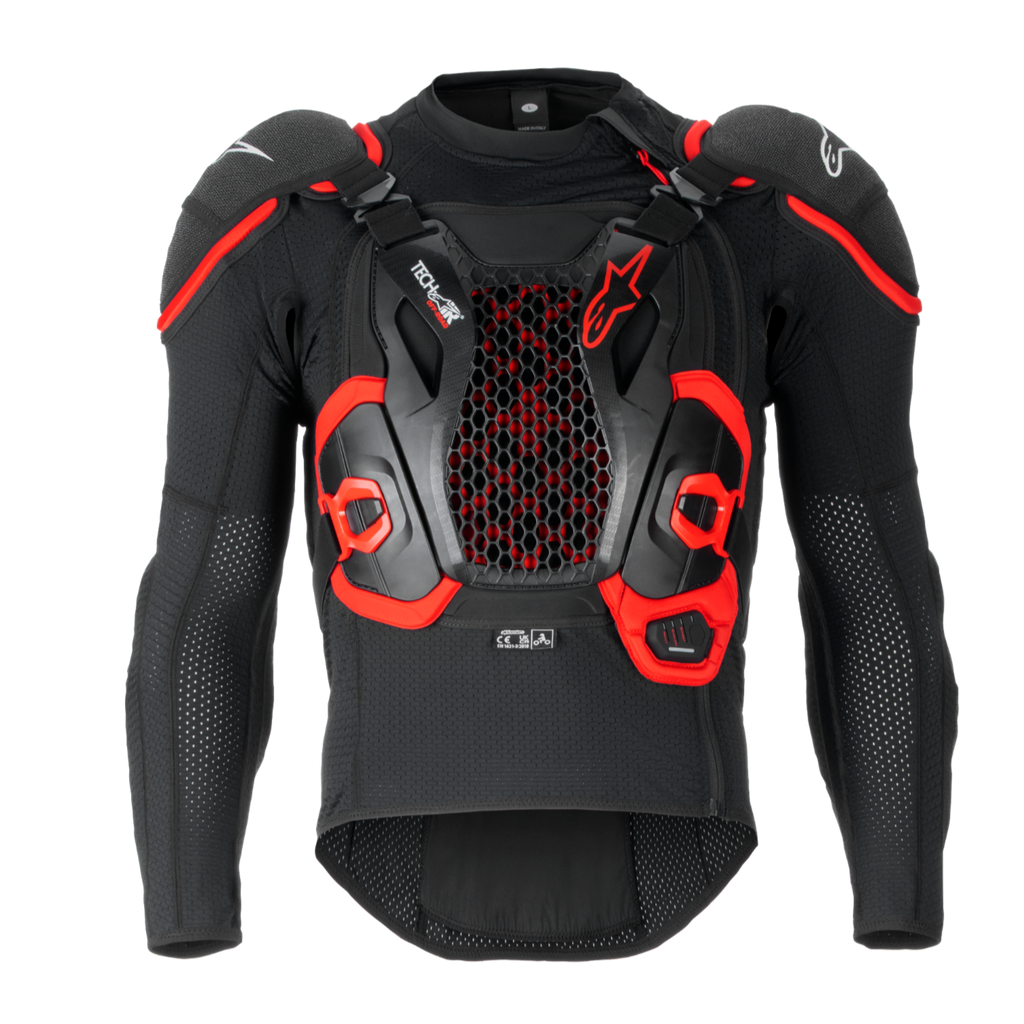

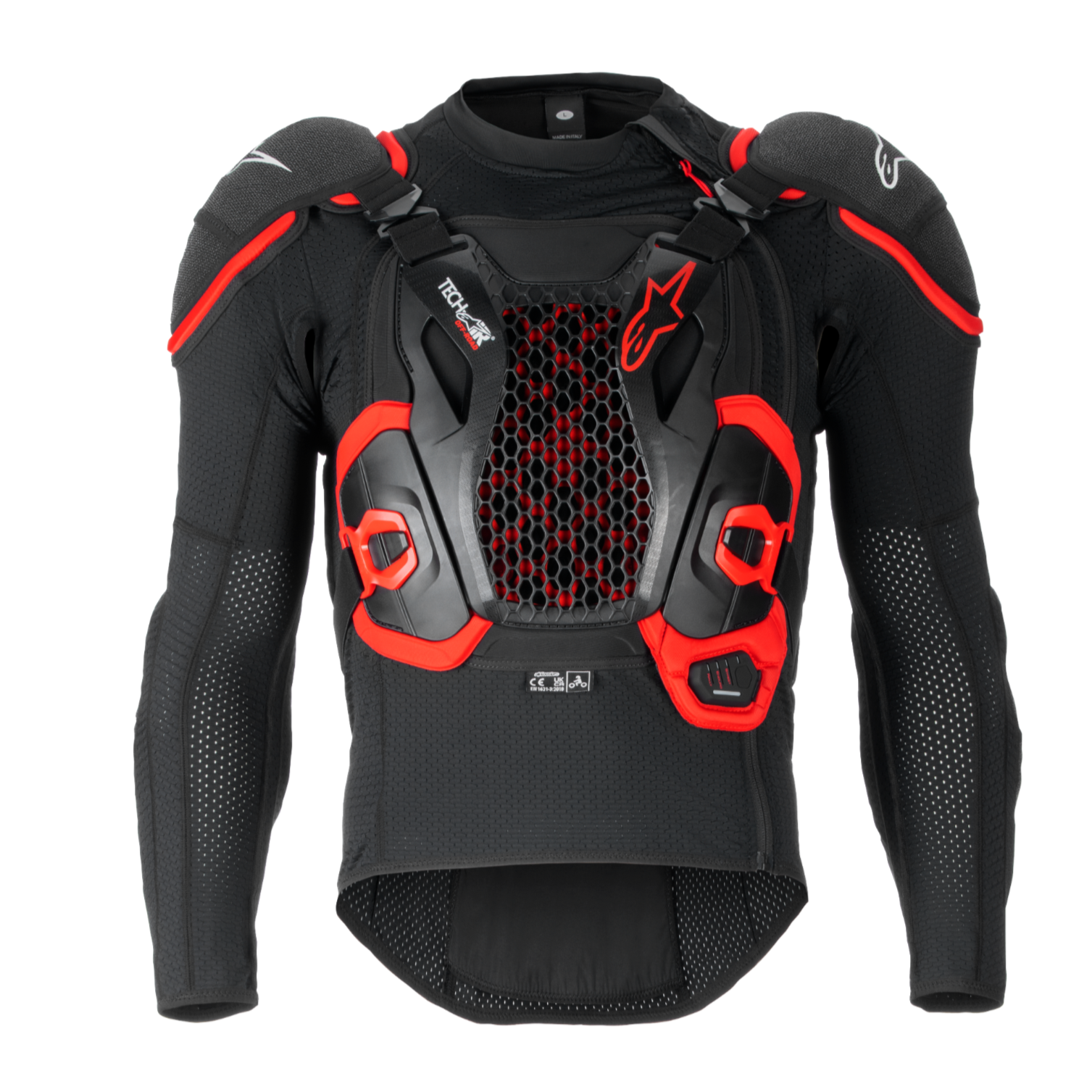

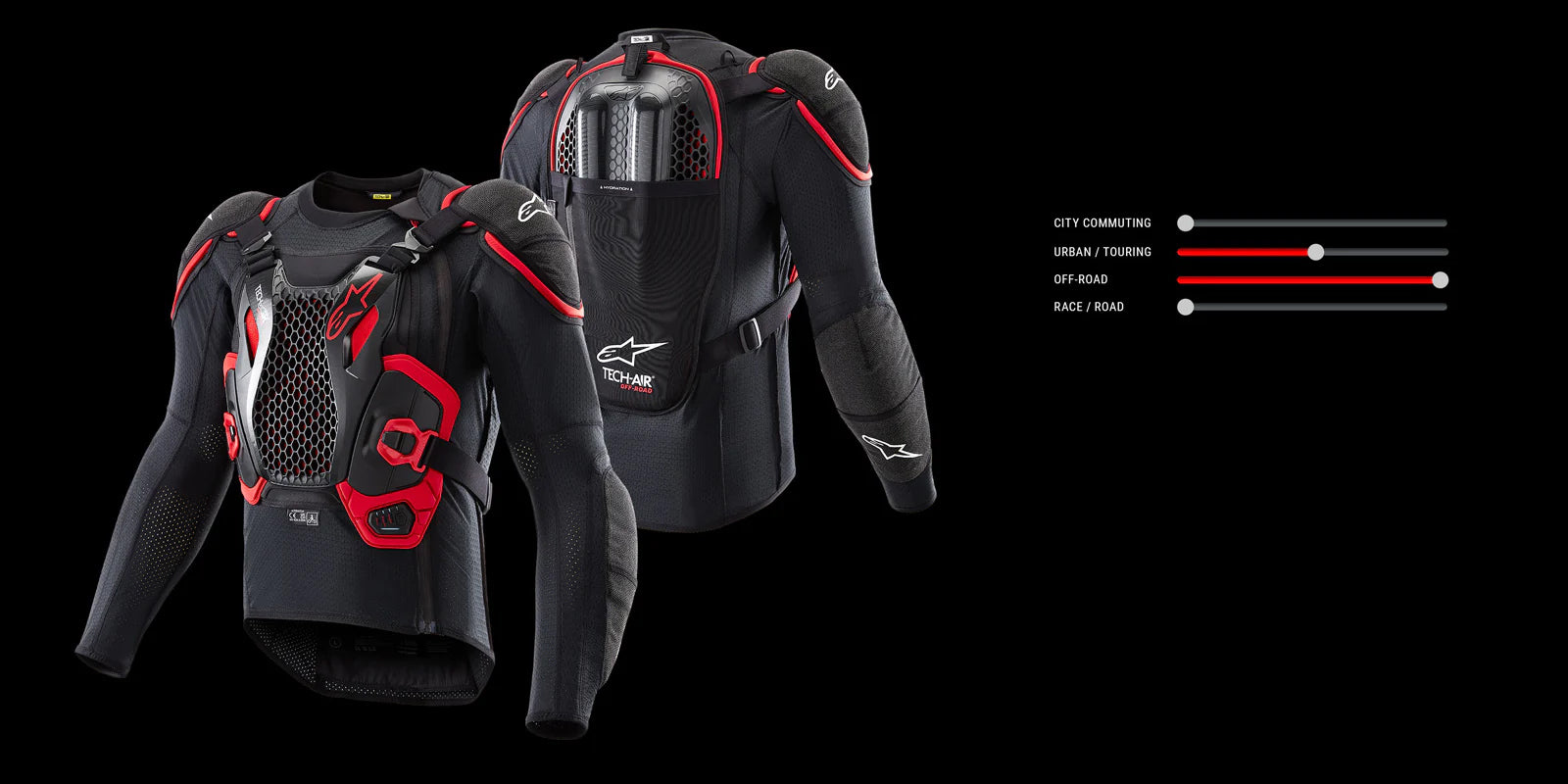

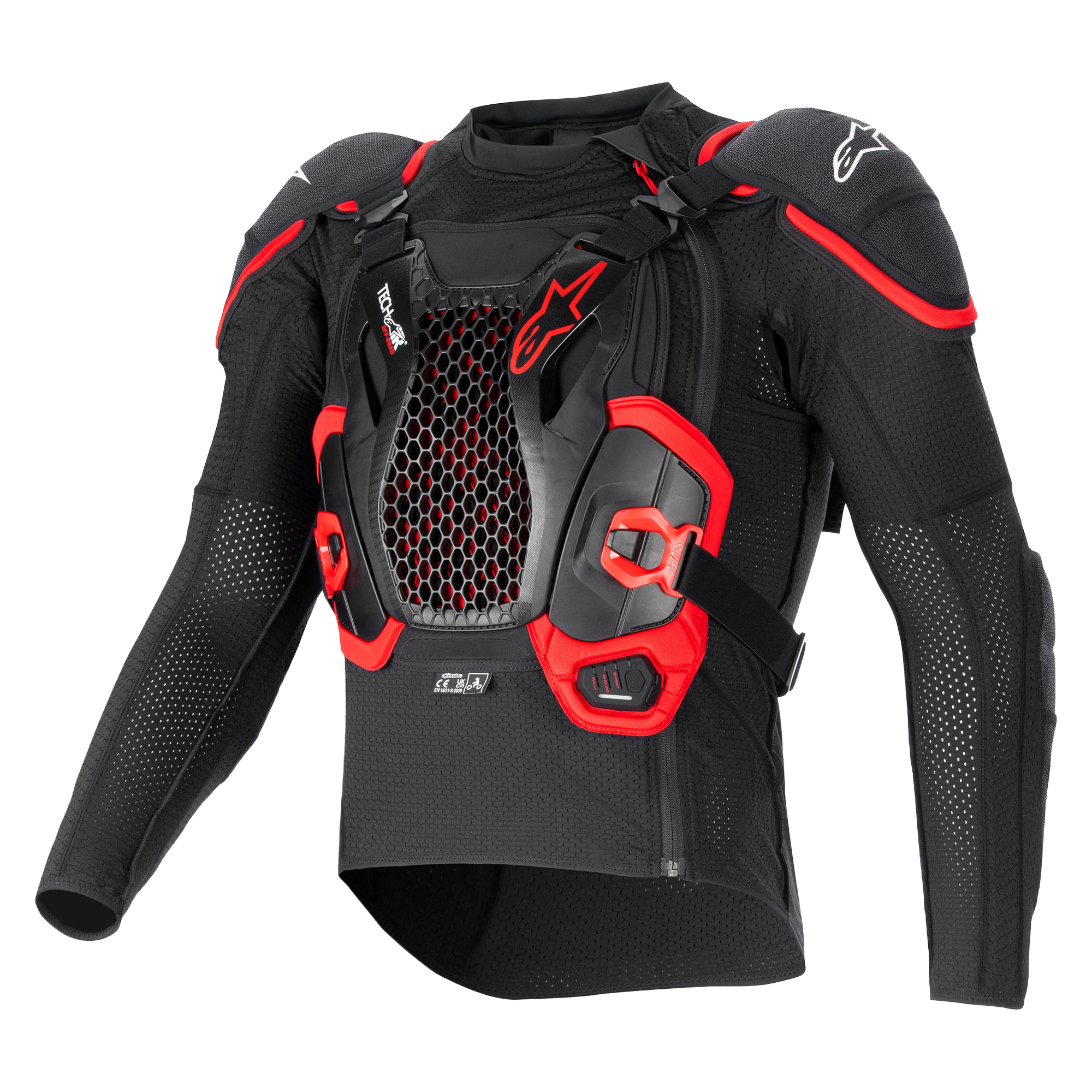

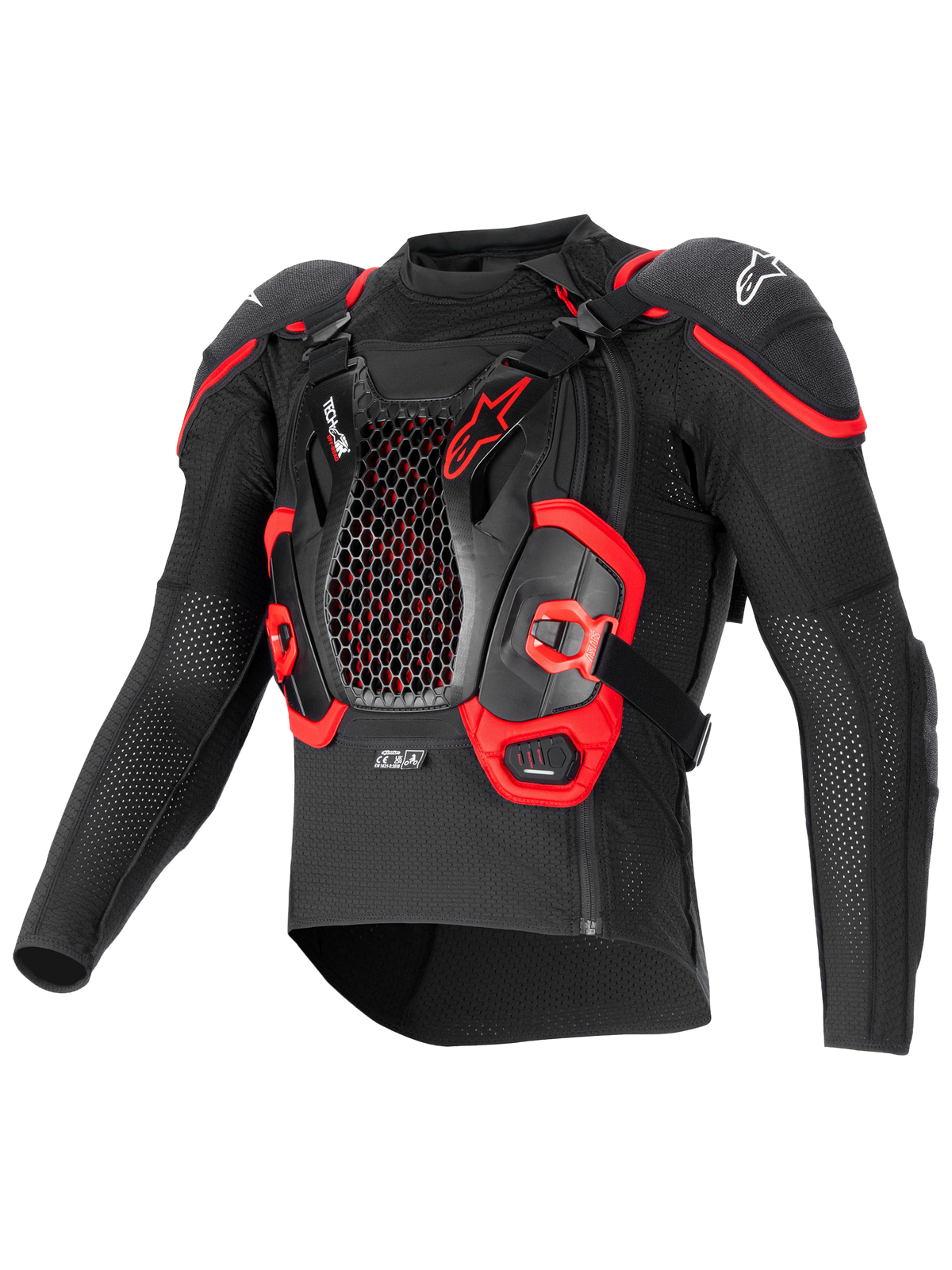

Tech-Air® Off-Road is a FIM homologated Airbag System designed specifically to handle the rigors of Rally riding and provide unrivalled upper body protection. Developed and tested since 2017, in the most grueling conditions of the Dakar Rally, the world’s toughest off-road race, the Tech-Air® Off-Road System offers the most advanced active airbag technology for off-road riding. The Tech-Air® Off-Road System, with the active airbag inflated, delivers CE Level 1 full Chest and full Back protection, plus coverage to the shoulders, neck, and collarbones in the event of a crash. The System is integrated with an Alpinestars Off-Road Protection Jacket that is equipped with a Level 1 passive full back and limb protection, integrated protection on the arms and a CE Level 2 passive full chest protector to offering riders enhanced roost protection against rocks, debris, and other obstacles they may come into contact with on the trail. Built tough enough to tackle any terrain, the System comes pre-loaded with three Riding Modes; ENDURO, RALLY, and STREET, making it the perfect choice for every type of off-road and street riding.

The world’s first dedicated off-road Airbag System, Tech-Air® Off-Road comes with 3 Riding Modes; ENDURO, RALLY, AND STREET.
Riding Modes are easy to navigate while on the move via the LED Display located on the front of the System, or via the Tech-Air® App.
The Tech-Air® OFF-ROAD System features dual charge capability which means that with two full gas inflators, the System provides two separate airbag<br>deployments, since only one gas inflator will deploy to inflate the entire Airbag System during a crash scenario.
Quick release cover opening allows for rapid gas inflator replacement by user, only available in countries where gas inflator replacement by individuals is permitted by local regulations.
A fully self-contained, standalone system; 3 accelerometers (1 triaxial accelerometer) and 3 gyroscopes (1 triaxial gyroscope) are integrated in the Electronic Control Unit (ECU) to provide the best crash monitoring performance and active airbag protection in a variety of dynamic off-road riding scenarios. No external sensors are required for the system to operate.
The Tech-Air® OFF-ROAD System uses an integrated, certified lithium-ion battery, with a fully charged battery life of 30 hours and a recharge time of approximately 4 hours; charging the battery for approximately 1 hour will provide approximately 8 hours of riding time use.
The LED Display features an integrated charging port for convenient and easy charging of the System; simply plug in the USB-C cable into the Recharge Port on the System’s LED Display and connect it to a power source.
Ease of use; to turn on the Tech-Air® Off-Road System, simply zip up the System and it will automatically turn on and activate the Airbag System. To deactivate the airbag, unzip the System and it will automatically turn off.
A dedicated Shipping Mode slide switch is located on the ECU, which when turned on effectively puts the the System into sleep mode. Only accessible once the Electronic Case on the back protector is removed, the Shipping Mode switch allows the battery to be disconnected from the System during transportation or when the System will not be in use for a prolonged period of time. The System is sold with the Shipping Mode turned on, make sure to turn the Shipping Mode off when you open the box and use the Airbag System for the first time.
The Tech-Air® Off-Road System’s Electronic Control Unit (ECU) and airbag are completely removable so that the Protection Jacket can be washed separately.

FIM Cross Country Rally Regulations Homologated for race use.
Proven to be more than twice as protective as passive impact protectors.
Dual gas inflators deliver two airbag deployments for guaranteed protection.
Average inflation time of 52 milliseconds (depending on the size of the airbag).

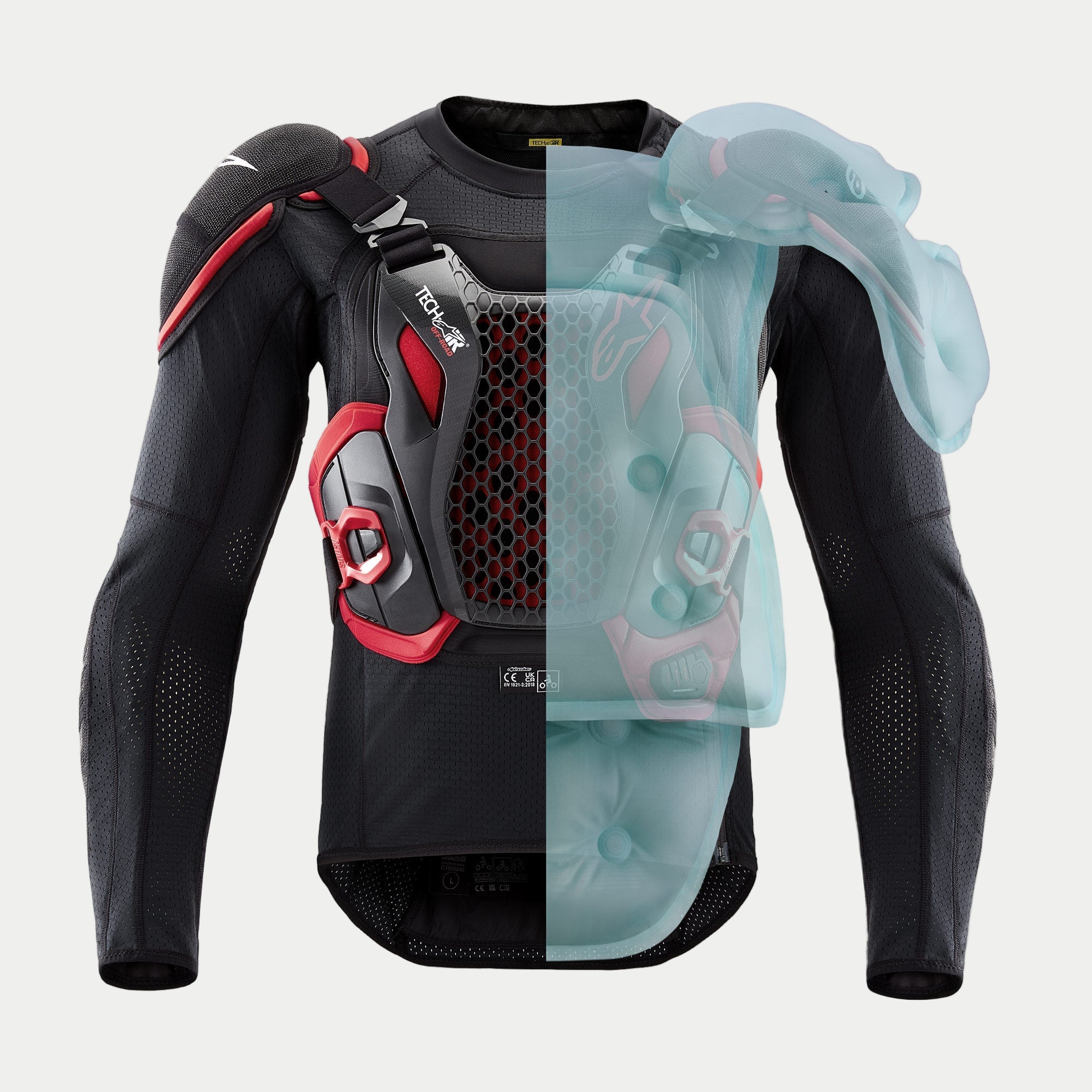

Airbag coverage on chest, back, shoulders, and neck provides upper body protection.
Neck protection is provided by the airbag inflating around the neck in compliance with the FIM regulations.
The airbag has been fully certified for up to 4 airbag deployments before having to replace it, providing the airbag hasn’t been damaged in one of the first 3 deployments.
Performance tested according to DOLOMITICERT S.c.a.r.l. M.16.03.001.1 Protocol for Airbag Protectors Rev. 5 5/07/2022 on ENDURO, RALLY, and STREET algorithms.
Performance tested according to DOLOMITICERT’s Technical Disciplinary for Inflatable Protectors with Electronic Activation Revision 5 dated 13 October 2023.
IMPORTANT: neck protectors are NOT compatible with Airbag Systems, accordingly the Tech-Air® OFF-ROAD System is NOT compatible with the use of Alpinestars’ Bionic Neck Support (BNS) nor any other neck protections. <strong>
ALPINESTARS OFF-ROAD PROTECTION JACKET TECH SPECS </strong>
Premium materials combined with an innovative design and honeycomb Nucleon Cell technology create a passive protector that is highly ventilated, lightweight, ergonomic, and robust.
Constructed from a breathable stretch mesh for superior ventilation while keeping the protection close to the rider’s body, the protective garment is CE certified Class C under garment.

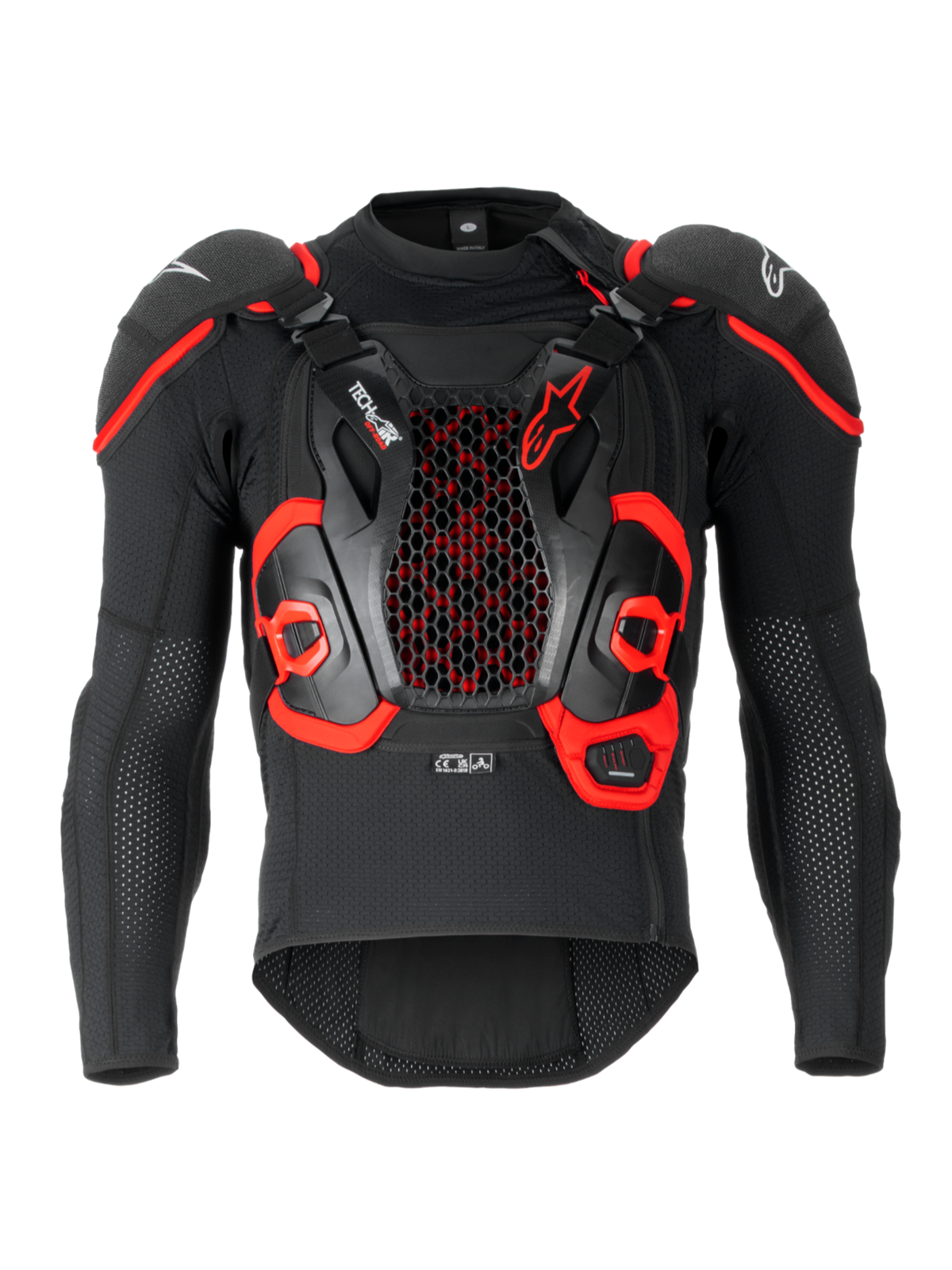

Slim fit stretchable fabric construction features a floating, highly ventilated, and flexible thermoformed chest protector for an optimal riding experience.

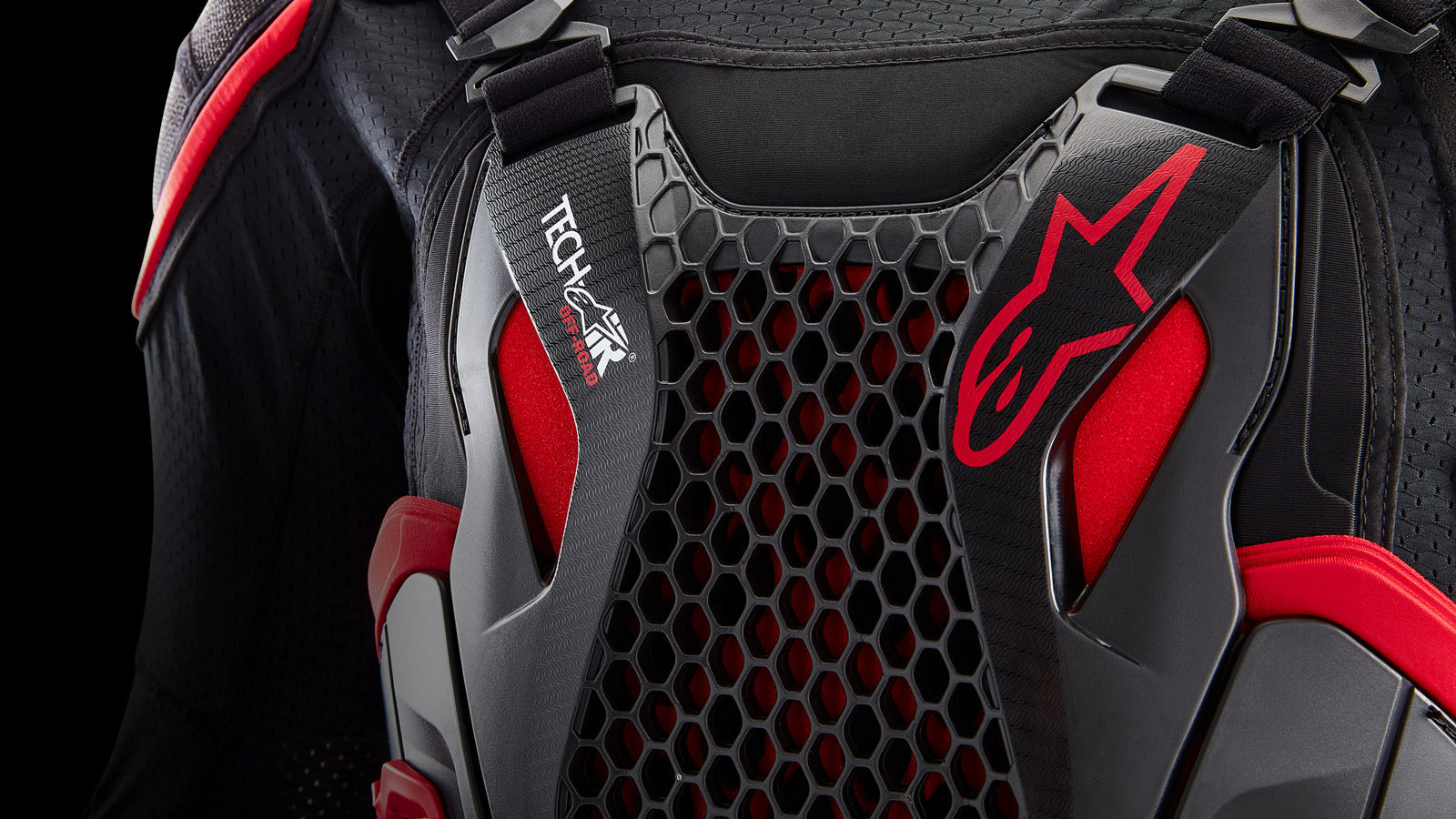

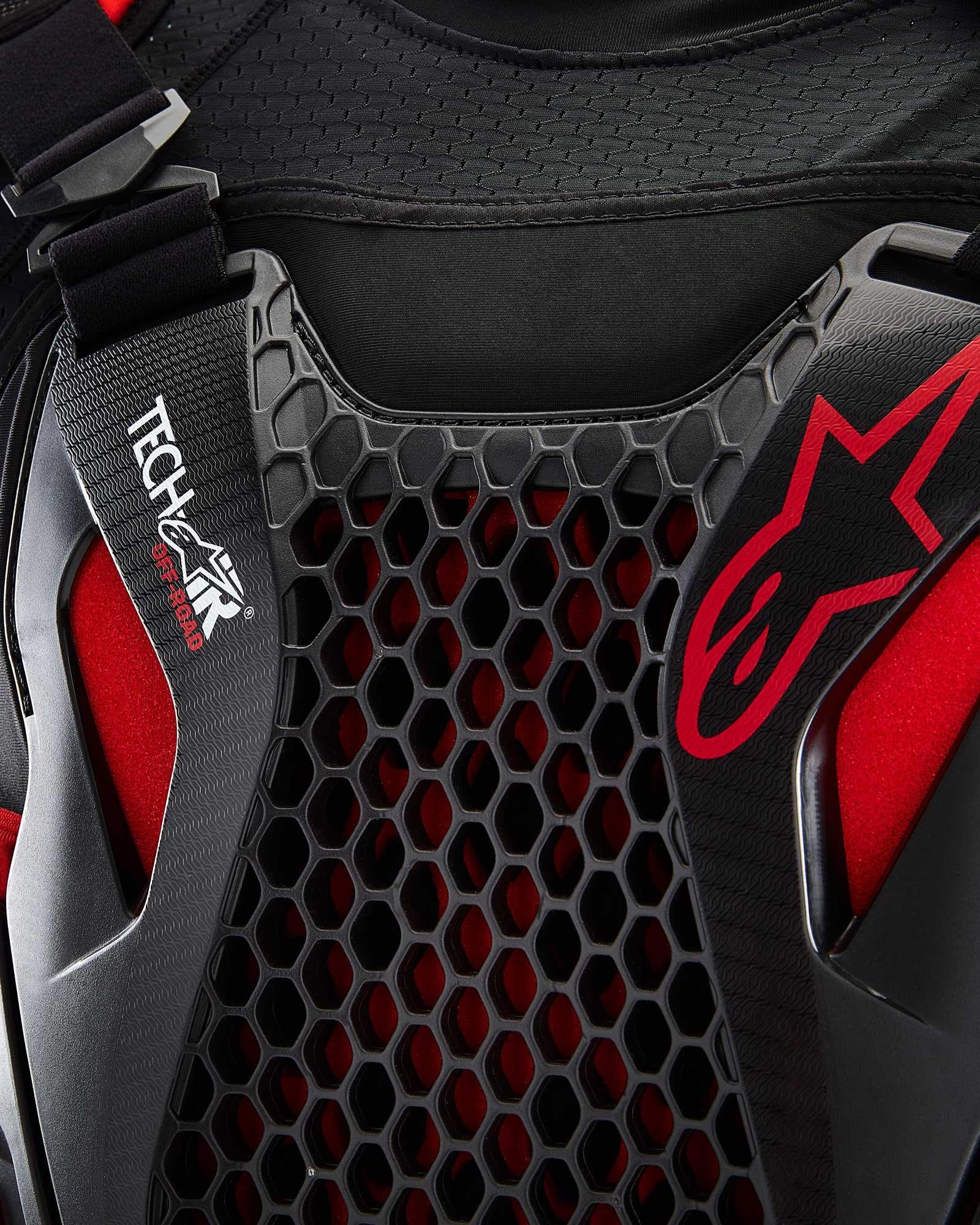

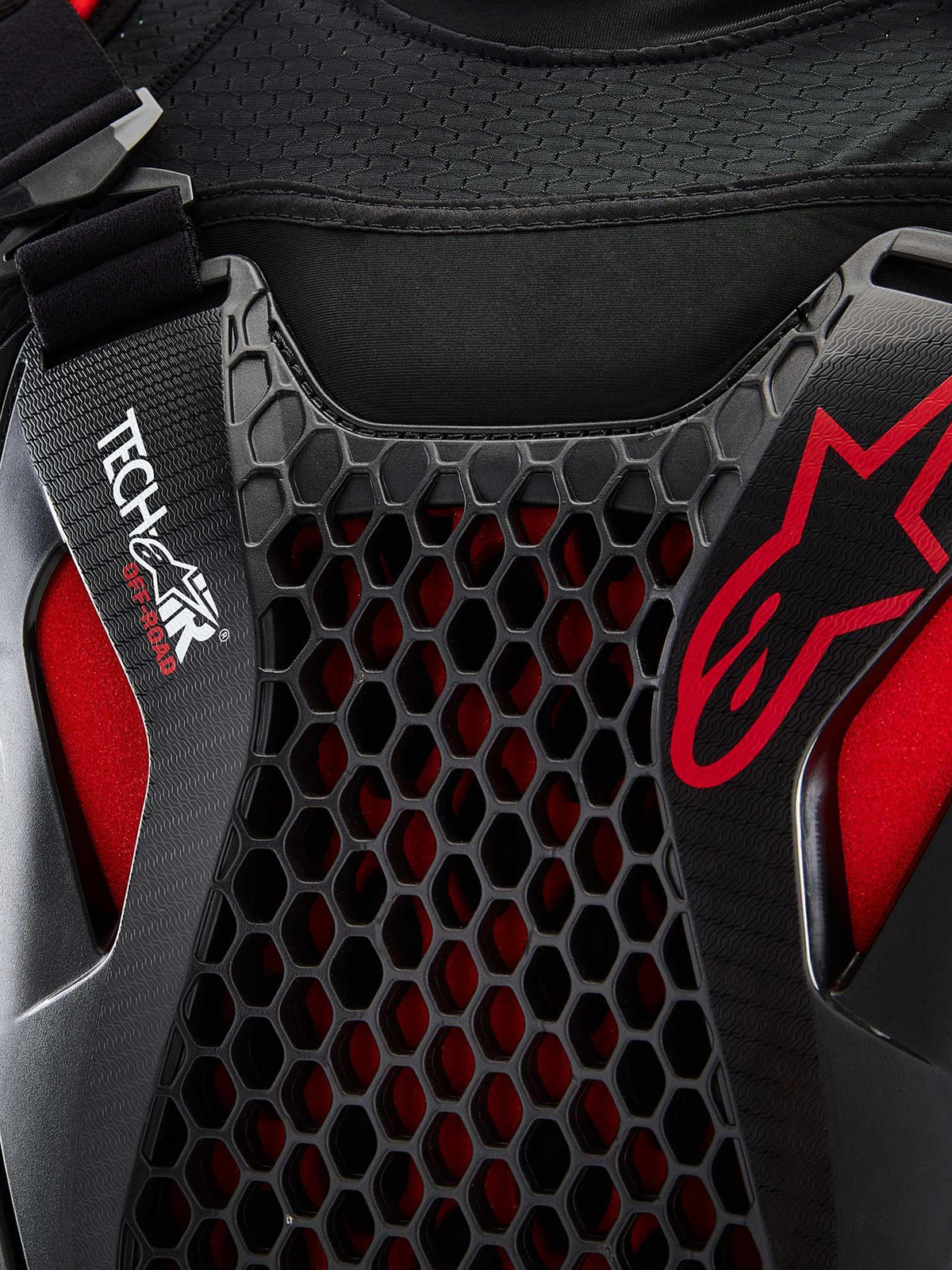

Both the chest and back protectors incorporate new Nucleon CELL Technology which is light, flexible and highly ventilated for enhanced performance.
The Protection Jacket’s passive Chest protector is certified to CE Level 2, while the Back, Elbow and Shoulder protectors are certified to CE Level 1, providing additional protection against impacts in key areas; elbows and shoulders protectors are replaceable.
Lateral zipper for a better fit and ease of use, and which allows the jacket to provide complete front chest protection.
Ergonomic design delivers exceptional rider comfort and freedom of movement.
Additional front padding on the arms and chest for enhanced roost protection.

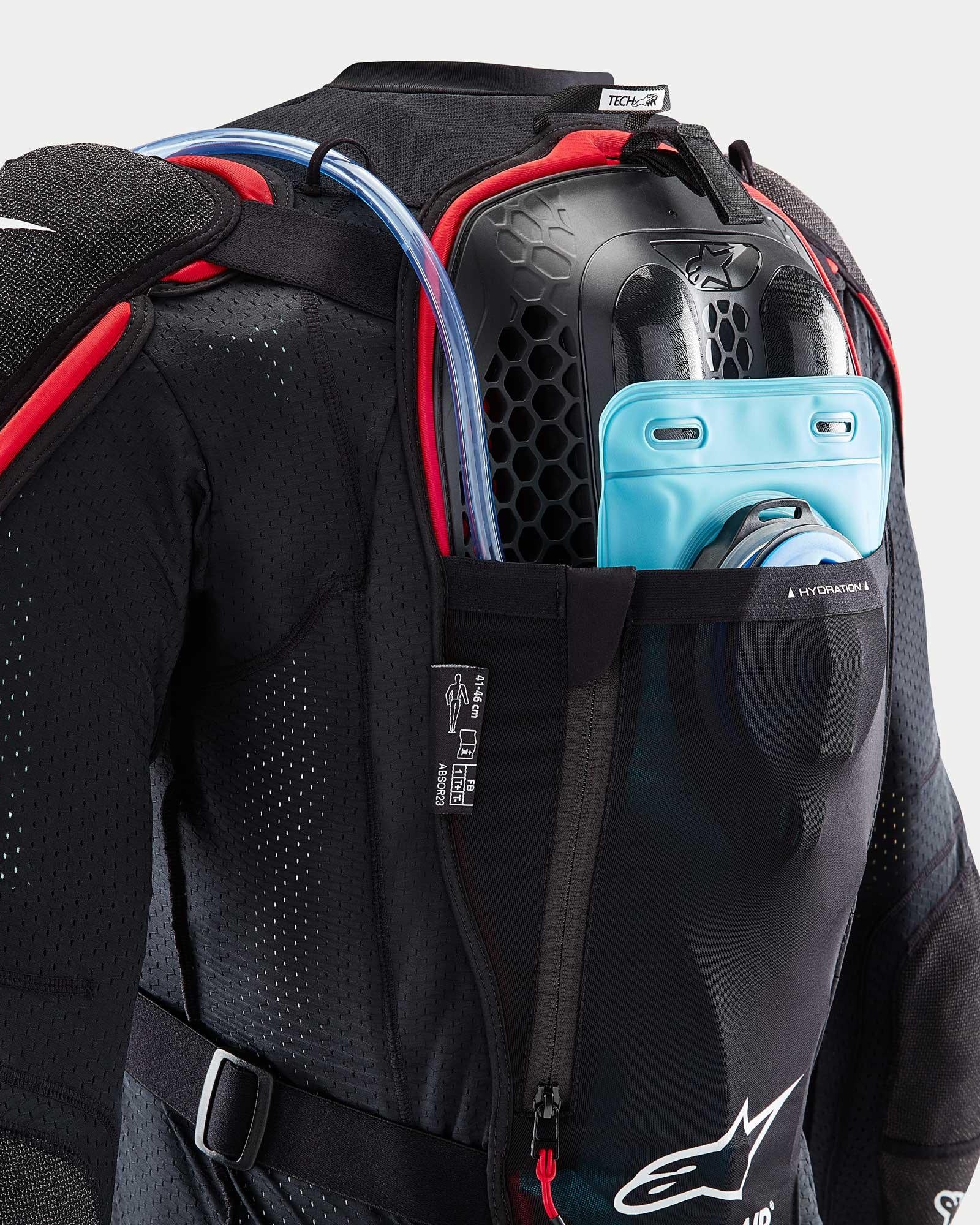

Water bladder compatible: back holder for a Hydration pack with 1.5-3 Liter capacity already included.

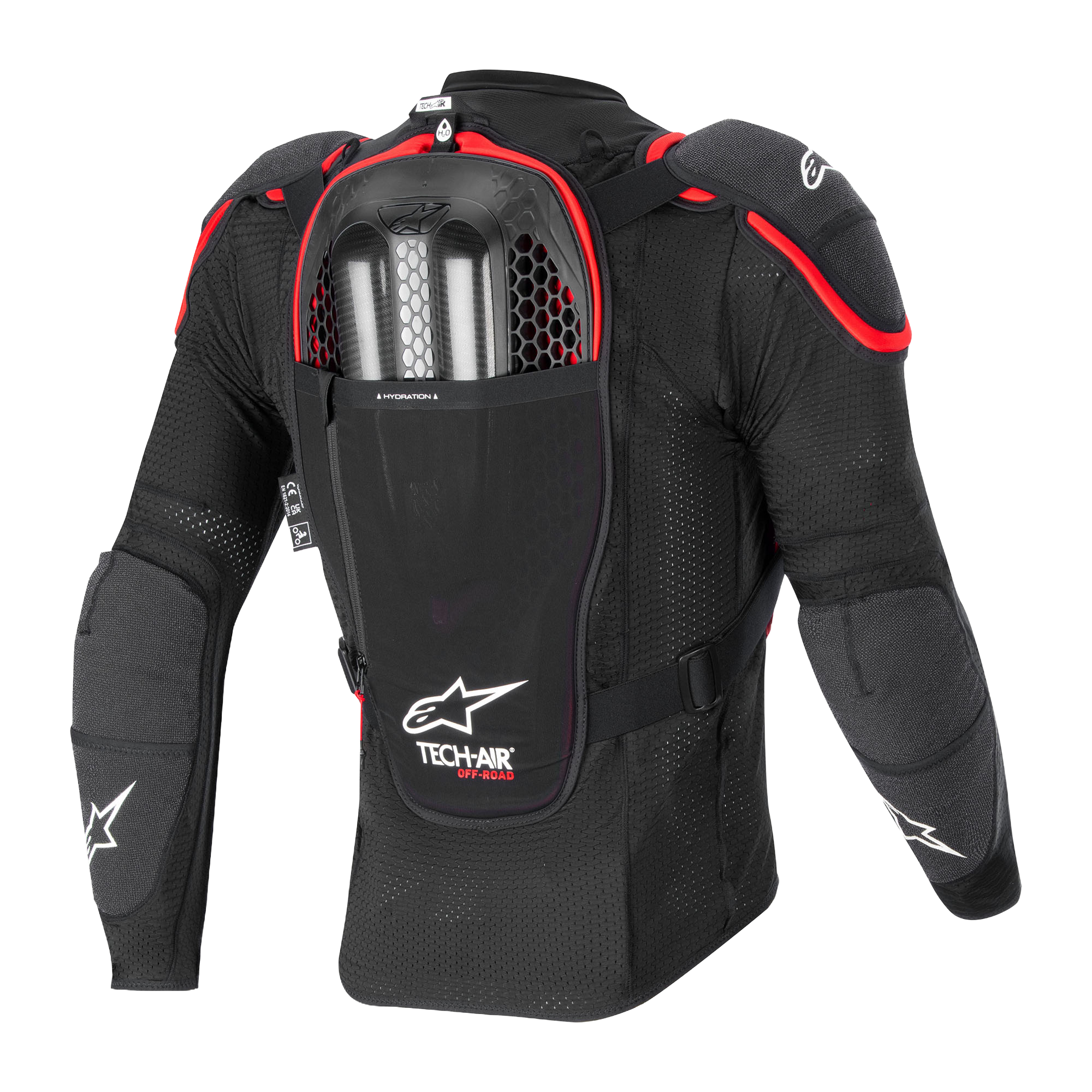

Robust internal housing located in the built-in CE-certified Nucleon CELL back protector accommodates the System ECU and gas inflators, allowing the Tech-Air® Off-Road System to be worn with any Alpinestars’ Tech-Air® Ready jacket, or any properly fitting motorcycling jacket.
The Tech-Air® Off-Road System’s ECU is seal-protected within the vest to ensure all-weather performance and the vest and componentry are certified to function between -10°C and 50°C.
The ECU has been homologated to ECE R10 04 which ensures the unit’s electromagnetic integrity and stability.
Bluetooth connectivity to a Tech-Air® App means the System’s operational status, battery status and My Ride Trip recording can also be easily accessed on a mobile device, subject to network coverage.
Users can easily update the System’s firmware when improved crash-detection algorithms are released via the Tech-Air® App.

EAN 8059347090184-hold

SKU 6507123-13-S

ULTIMATE OFF-ROAD PROTECTION

Tech-Air® Off-Road is a FIM homologated Airbag System designed specifically to handle the rigors of Rally riding and provide unrivaled upper body protection. Developed and tested since 2017, in the most grueling conditions of the Dakar Rally, the world’s toughest off-road race, the Tech-Air® Off-Road System offers the most advanced active airbag technology for off-road riding.

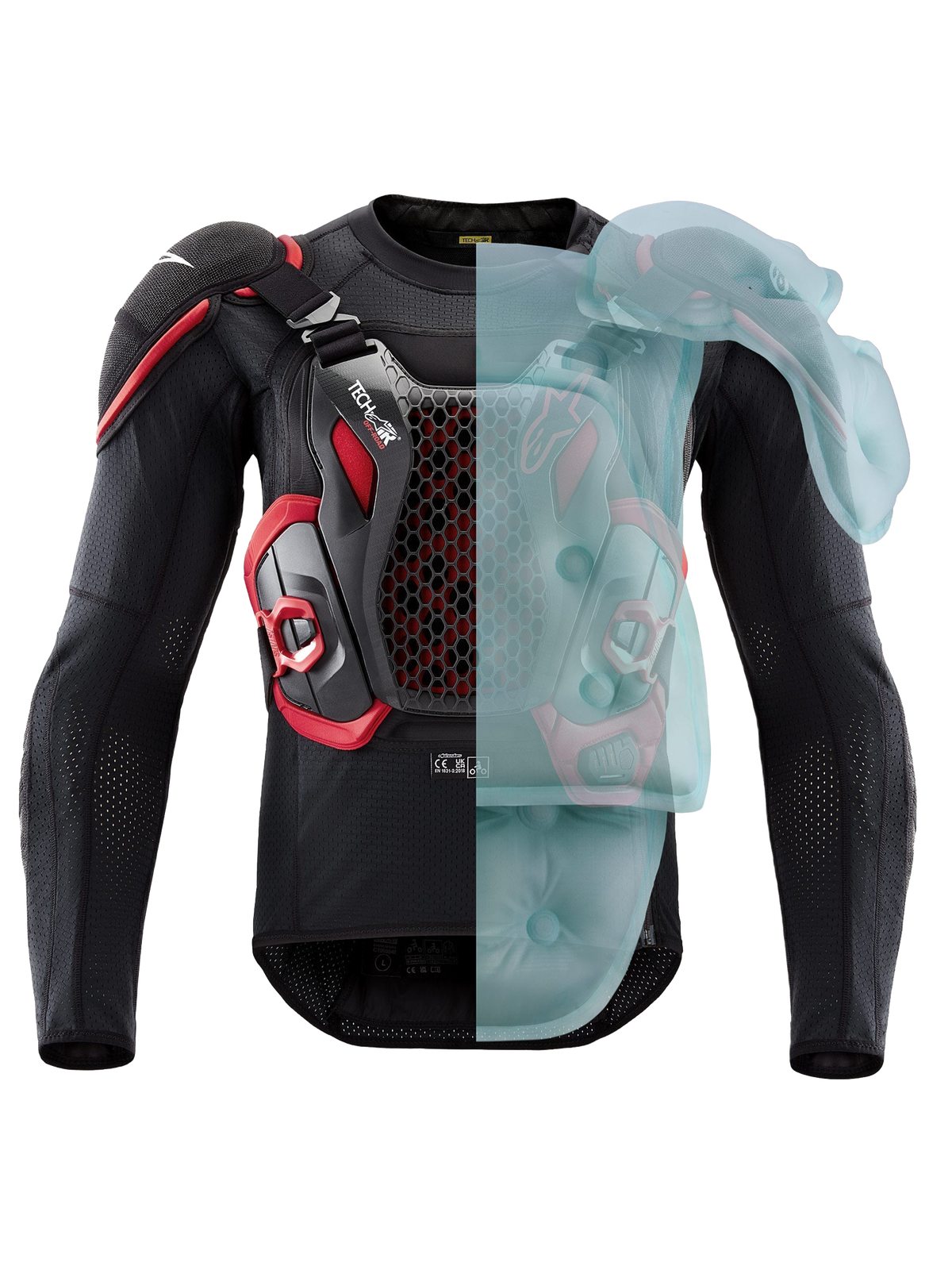

The Tech-Air® Off-Road System, with the active airbag inflated, delivers CE Level 2 chest
protector; CE level 1 shoulders, elbow and back protectors in the event of a crash. The System is integrated with an Alpinestars Off-Road Protection Jacket that is equipped with a Level 1 passive full back and limb protection, integrated protection on the arms and a CE Level 2 passive full chest protector offering riders enhanced roost protection against rocks, debris, and other obstacles they may come into contact with on the trail. Built tough enough to tackle any terrain, the System comes pre-loaded with three Riding Modes; ENDURO, RALLY, and STREET, making it the perfect choice for every type of off-road and street riding.

A.I. TECHNOLOGY

The state-of-the-art wearable Tech-Air® Off-Road System is equipped with a fully self-contained, standalone system; 3 accelerometers (1 triaxial accelerometer) and 3 gyroscopes (1 triaxial gyroscope) are integrated into the Electronic Control Unit (ECU) to provide the best crash monitoring performance and active airbag protection in a variety of dynamic off-road riding scenarios. No external sensors are required for the system to operate.

RALLY MODE:

Optimized for fast off-road action on any type of terrain and at high speeds.

ENDURO MODE:

Optimized for low and medium-speed trail and off-road action on any terrain.

STREET MODE:

Optimized for asphalt roads and traffic conditions including situations in which the rider may encounter another vehicle in an accident.

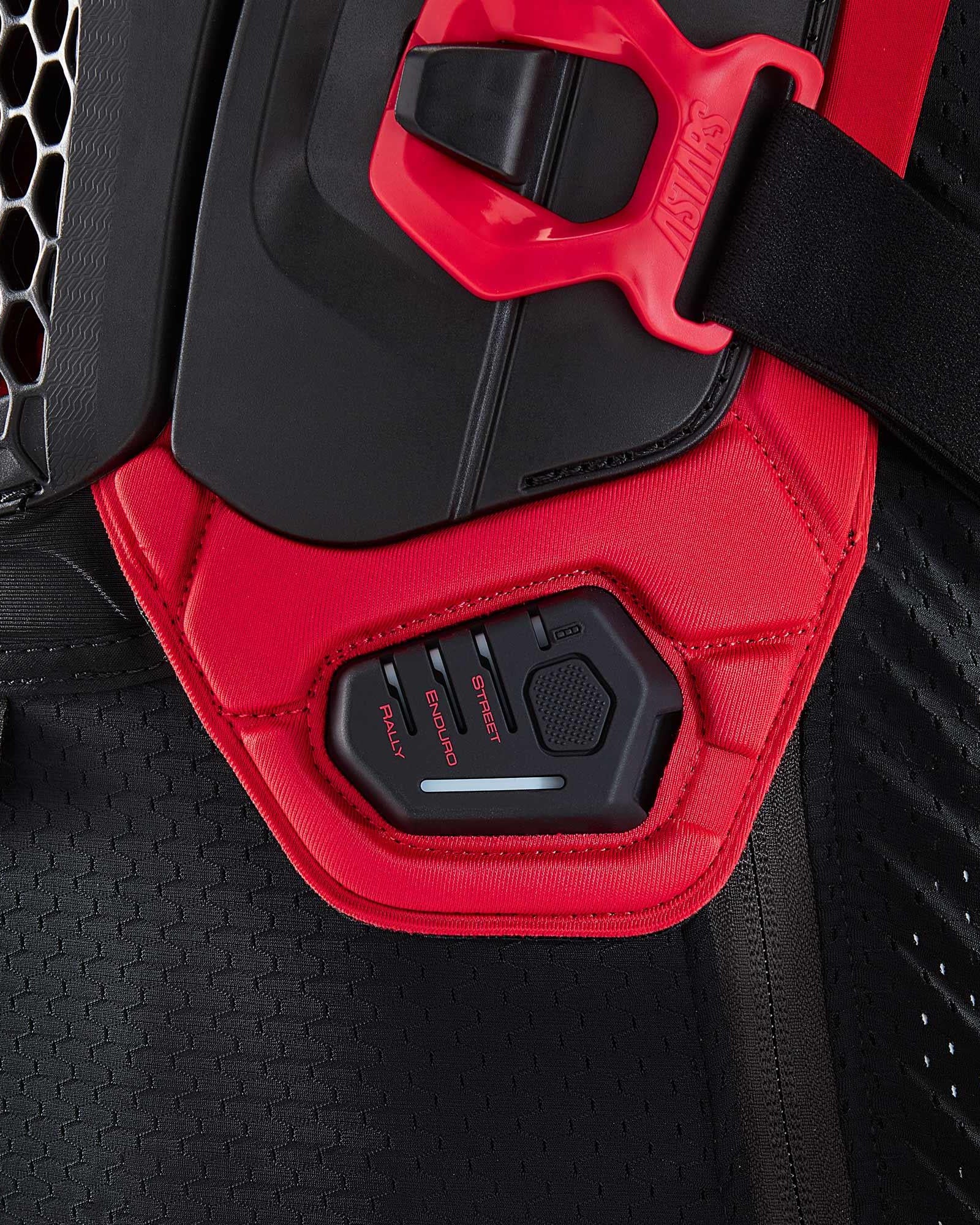

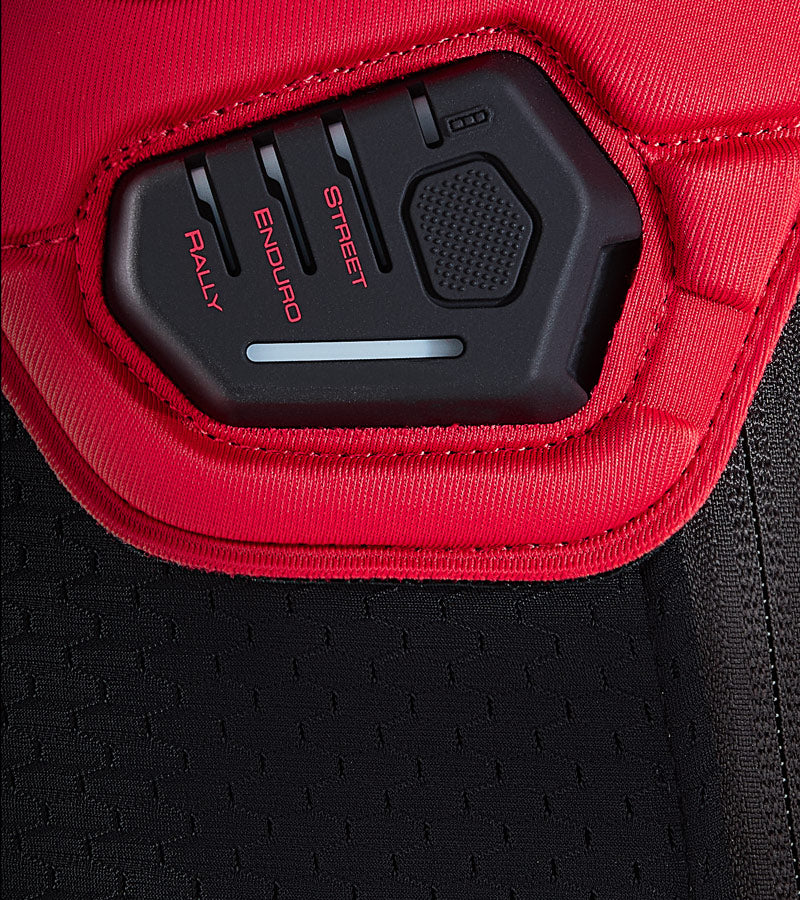

LED Display

The Button enables on-the-fly ride mode switching, provides Tech-Air® system status and a battery level indicator.

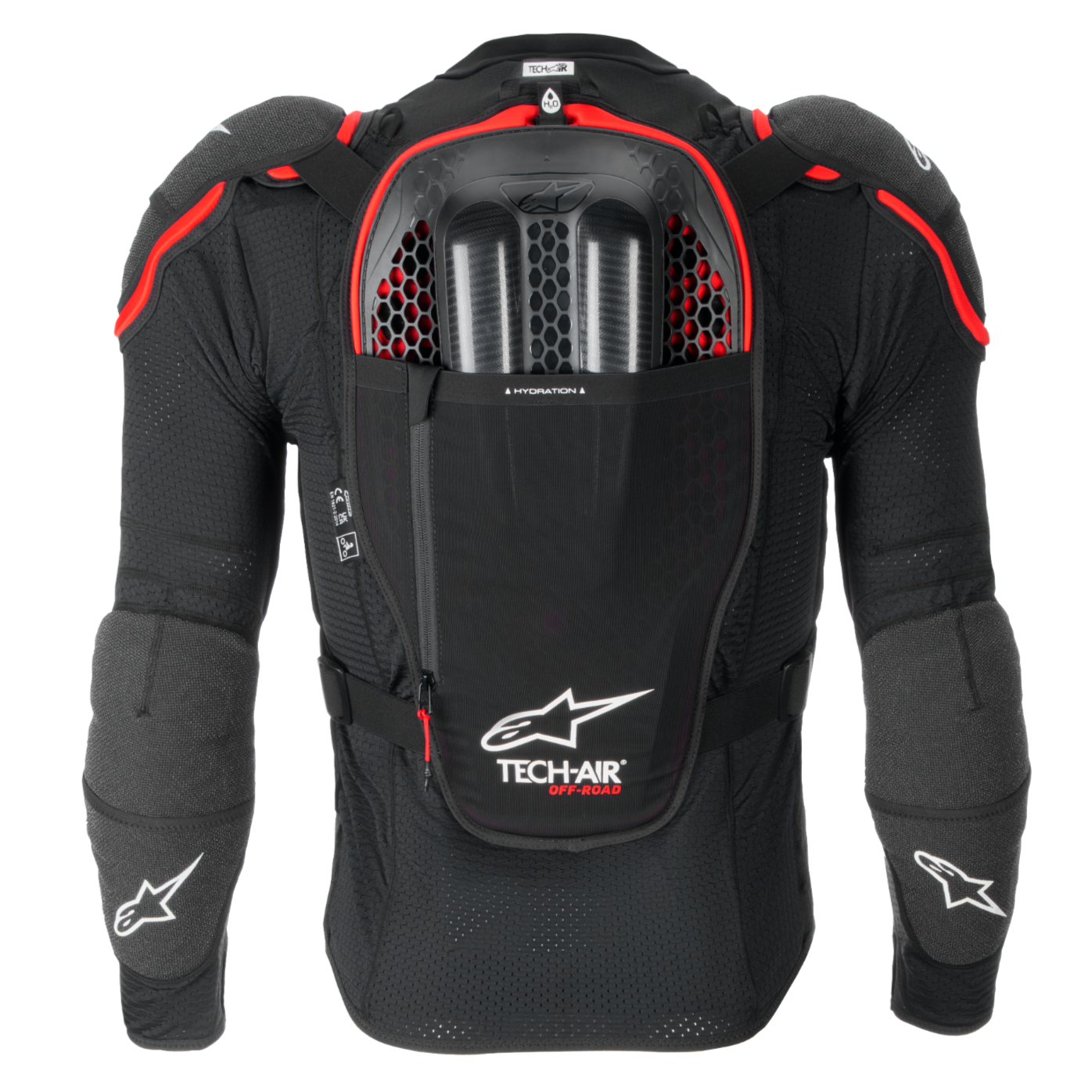

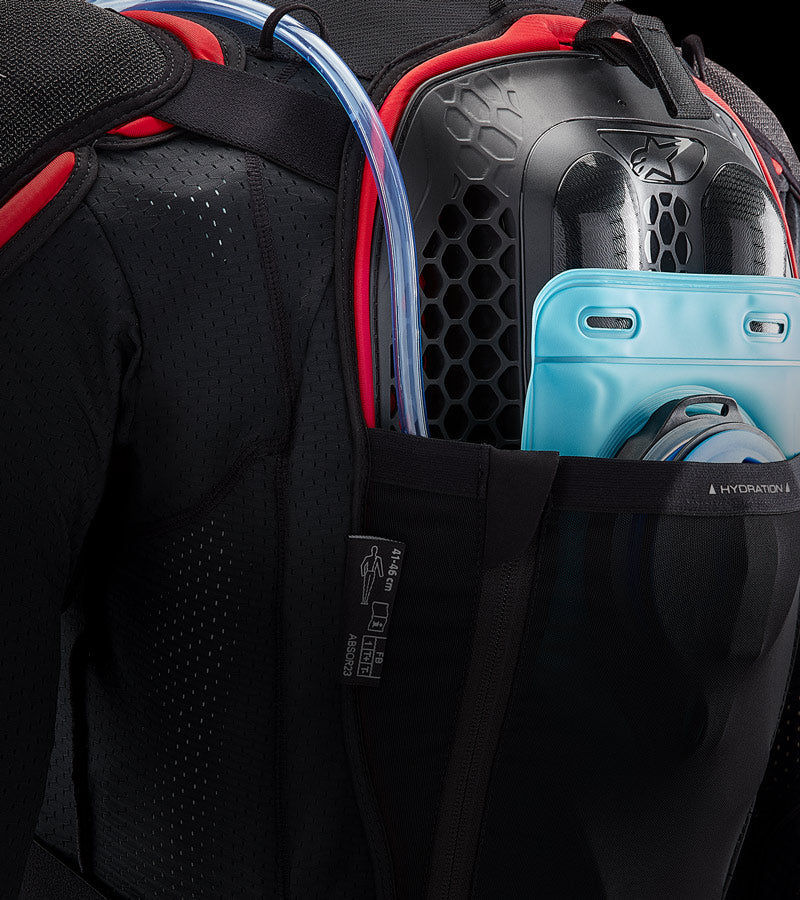

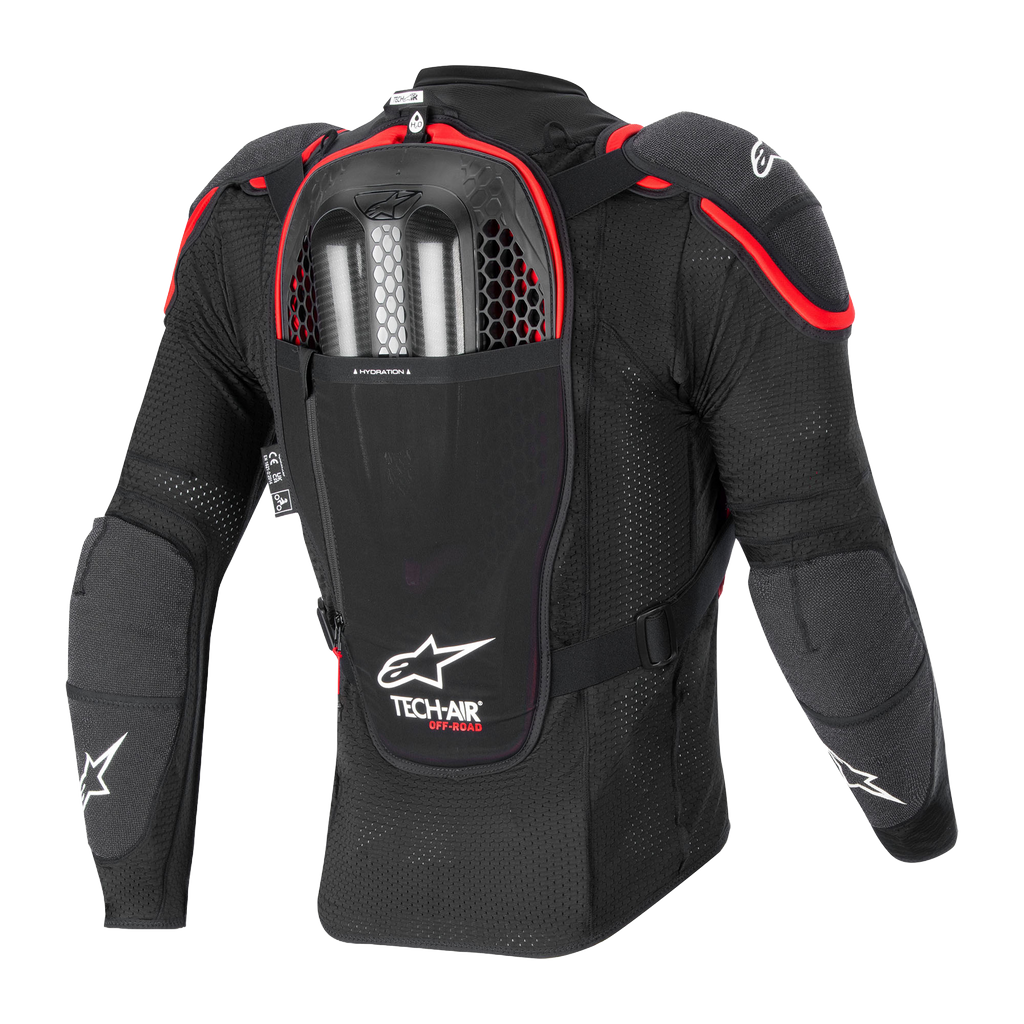

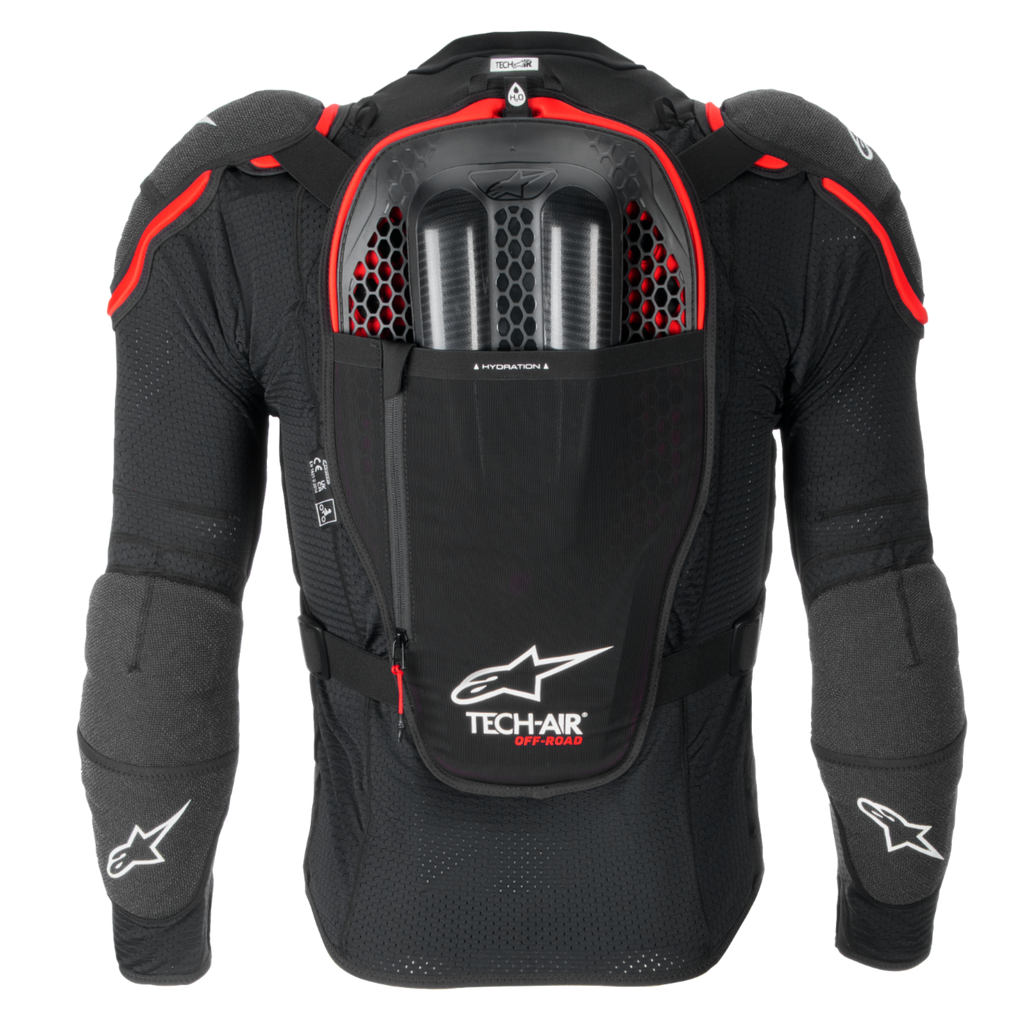

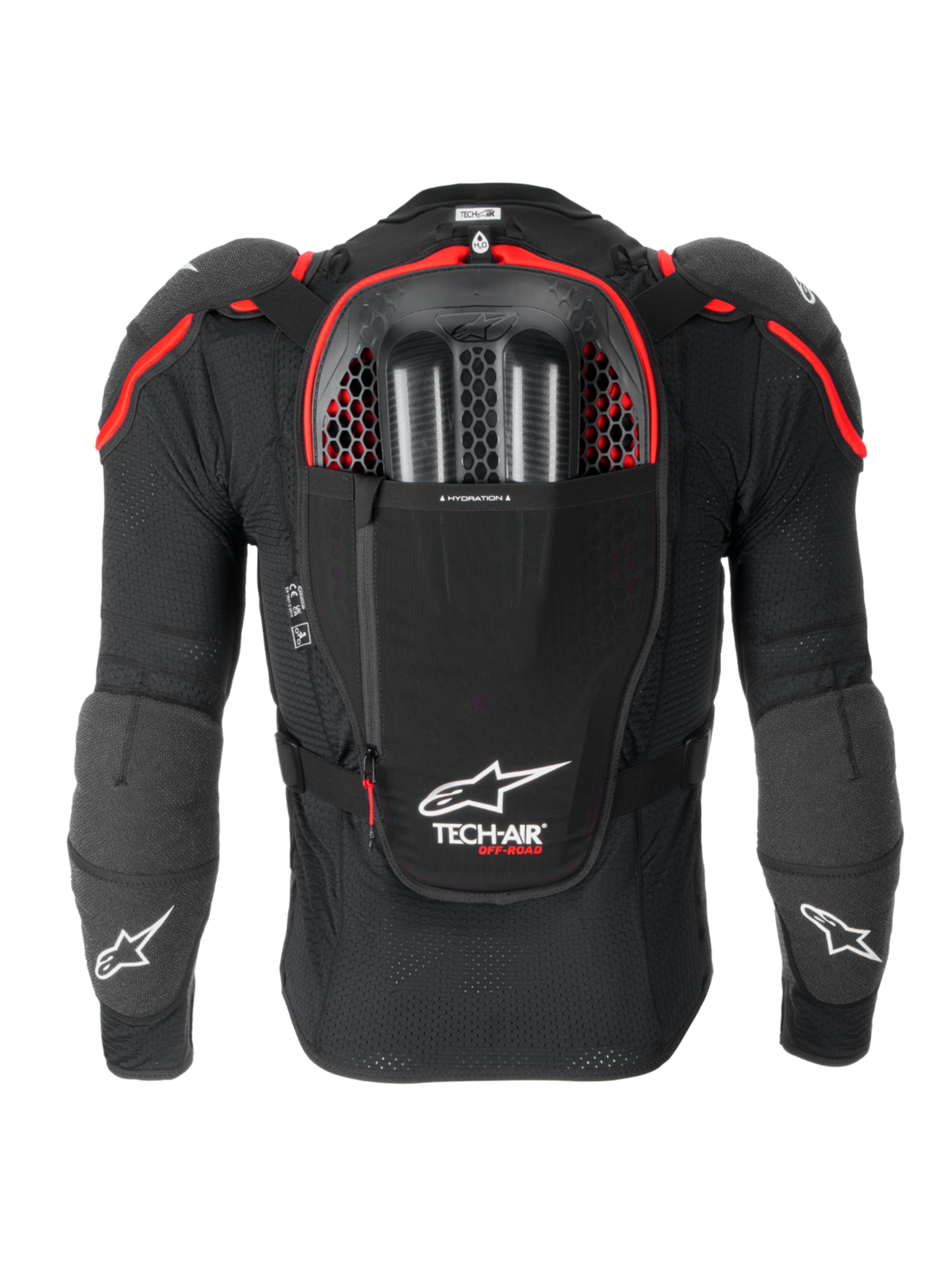

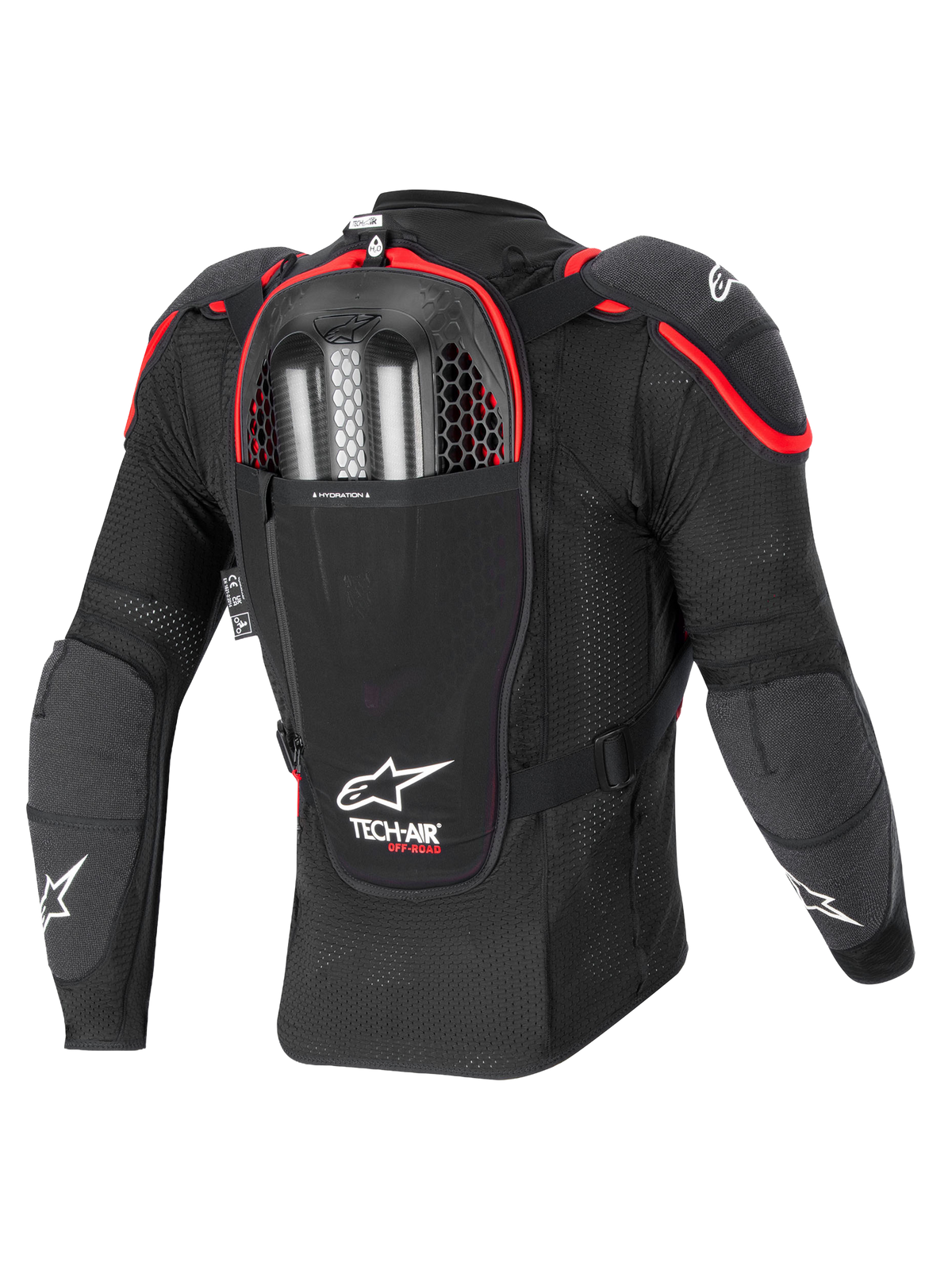

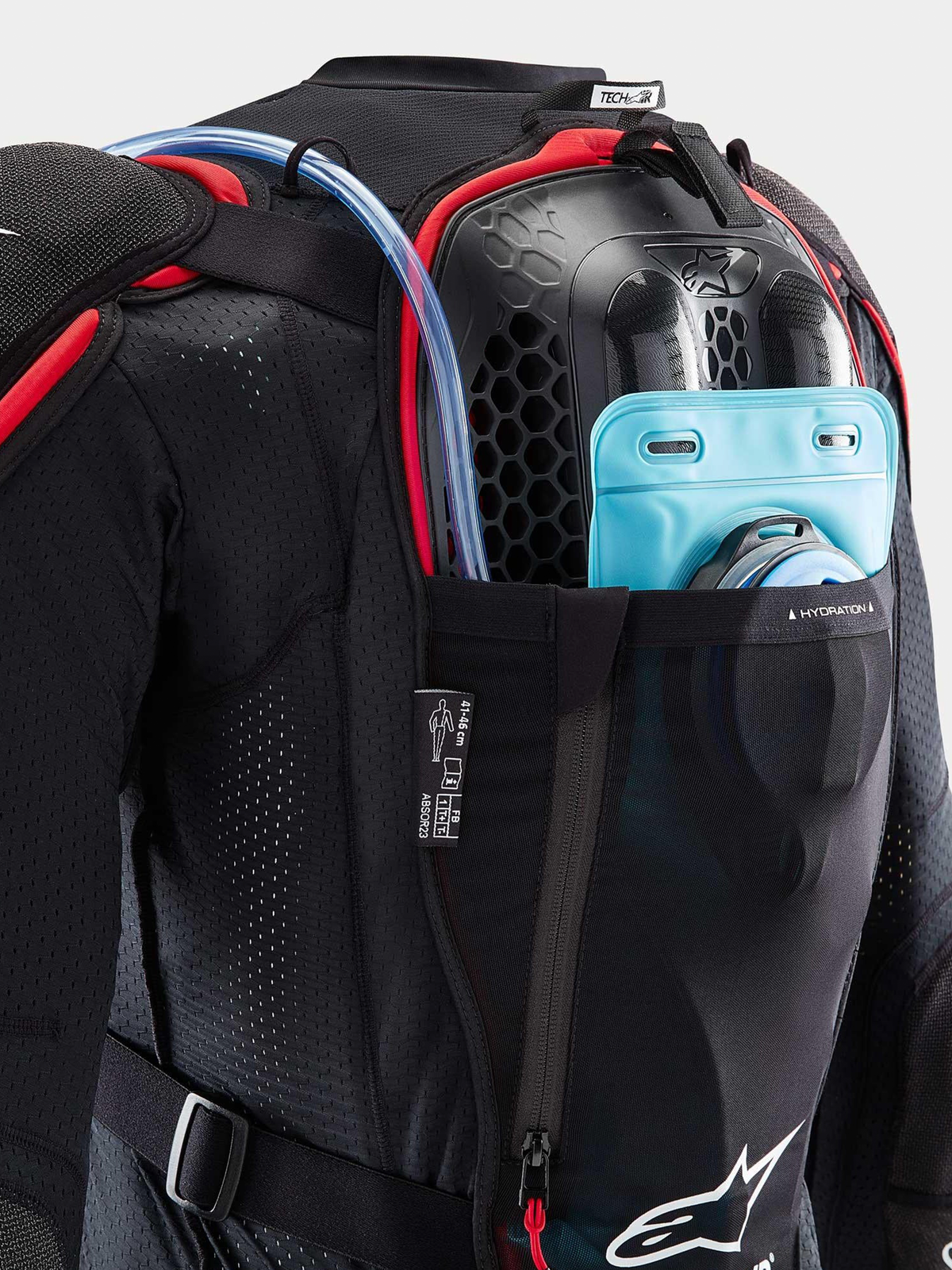

Back Protector & Hydration

The Back Protector is light and flexible, provides extended coverage, and is highly breathable. CE Certified Level 1. The chassis features a hydration pocket and hose routing for long rides.

BLUETOOTH CONNECTIVITY

Bluetooth connectivity to a Tech-Air® App allows monitoring of the system’s operational status, battery status and analysis of your ride including plotting your route on a map. The app allows you to easily switch between STREET, ENDURO and RALLY Riding Modes, ensuring motorcyclists are protected during your Off-Road Ride and on the commute to and from.
